Table saw cnc cutting machine Woodworking machine wood saw machine cutting machine precision sliding table saw panel saw

Product Details:
Place of Origin: CHINA
Brand Name: GOLDSHINE
Certification: ISO CE
Model Number: MJ6132TYD
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 5-15workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000sets per year



Table saw cnc cutting machine Woodworking machine wood saw machine cutting machine precision sliding table saw panel saw

Quick Detail:

1. Inner Structure

This machine uses linear guideway to lift the saw blade which is more smooth and more

durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

guarantees the compressive strength and the high precision of the inter-machine, which

can also reduce the shock of the machine.






Movable 220v/380v Woodworking Sliding Table Saw 2

2.Main Saw and Scorning Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.



Movable 220v/380v Woodworking Sliding Table Saw 4

3.SKF Bearing

All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.



4.​Sliding Table Structure and Feature

Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

5.Cast-iron Main Table and Extension Table

(sliding panel saw )

After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

Movable 220v/380v Woodworking Sliding Table Saw 8



6.Supporting Arm and Cross Cut Table

Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

7.controlling board

The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

Movable 220v/380v Woodworking Sliding Table Saw 11

8.Rip Fence Fine Adjustment

Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

Movable 220v/380v Woodworking Sliding Table Saw 12

9.Movable Positioning Stops and Cross Cut Fence

The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.

Movable 220v/380v Woodworking Sliding Table Saw 13

10.​Orange Dust Hood and Riving Knife

The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.

Movable 220v/380v Woodworking Sliding Table Saw 14

11.hand swage

Movable 220v/380v Woodworking Sliding Table Saw 15

12.saw blade guard

Movable 220v/380v Woodworking Sliding Table Saw 16

                                                                         Optional Device

1. Altendour-structure Dust Cover

Movable 220v/380v Woodworking Sliding Table Saw 17

Movable 220v/380v Woodworking Sliding Table Saw 18

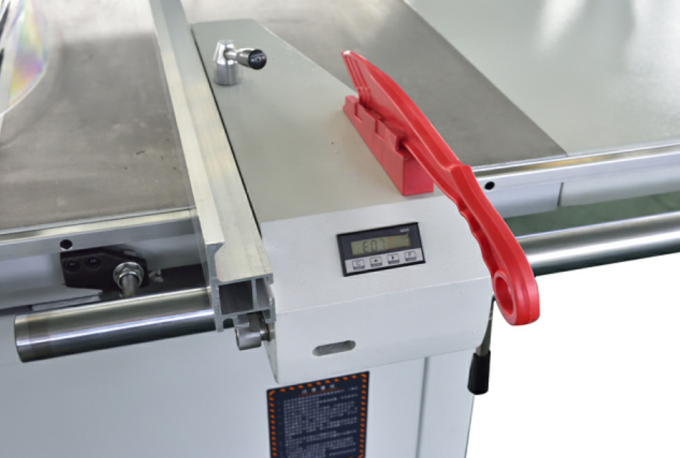

2. Digital Readout

Movable 220v/380v Woodworking Sliding Table Saw 19

Movable 220v/380v Woodworking Sliding Table Saw 20

Movable 220v/380v Woodworking Sliding Table Saw 21
